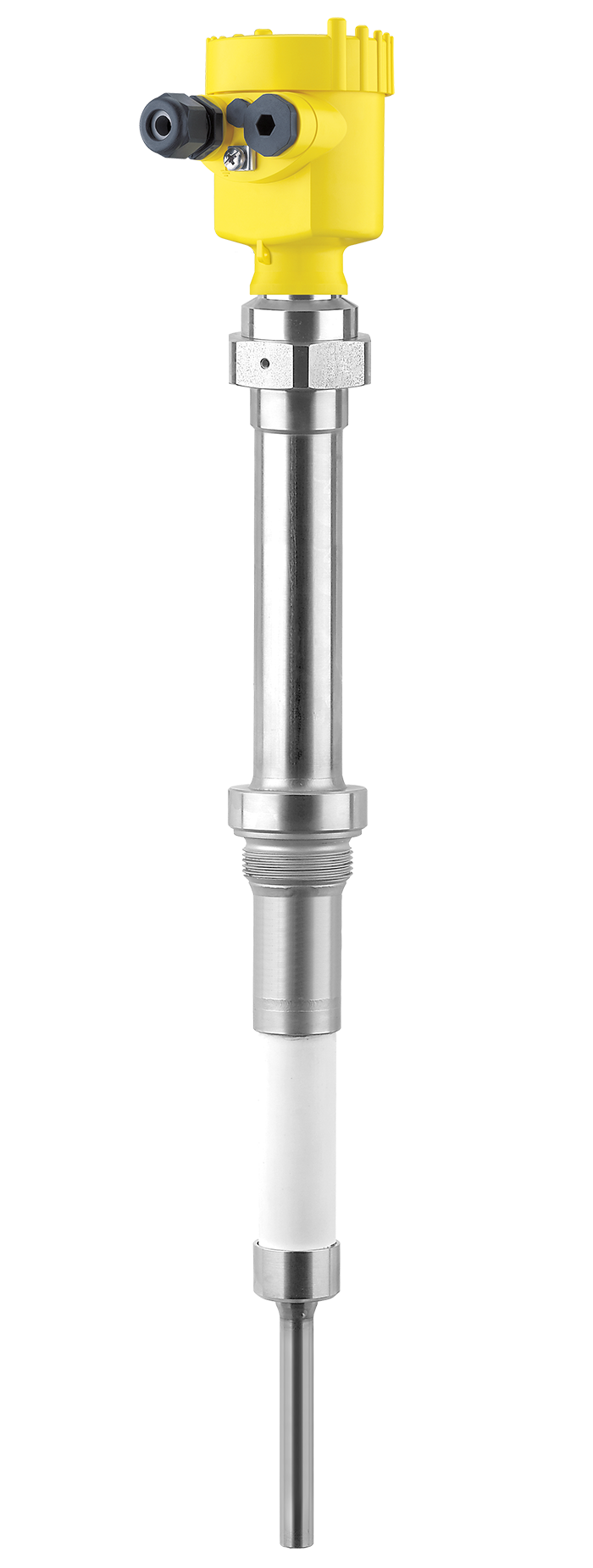

VEGACAL 67
Capacitive high temperature probe for level measurement of bulk solids
Rod probe, partly ceramic insulated
|
|
Application area
Your benefit
- Precise measuring results in virtually all bulk solids and high temperature ranges
- High flexibility through shortenable probe
- Long lifetime and low maintenance requirement through robust mechanical construction
Configure product
Product comparison
All documents and software for this product can be found in our Download Center.
Show all downloads- 40 m [Meter - Foot]
- -50 ... 400 °C [°C - °F]
- -1 ... 16 bar [Bar - kPa - psi]
- Ceramic insulated cable probe
- Ceramic insulated cable probe with crimping sleeve
- Ceramic insulated rod probe
- 316L
- Ceramic
- 316
- ≥ G1½, ≥ 1½ NPT
- ≥ DN50, ≥ 2"
- no media contact
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
- -40 ... 80 °C
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- Display/adjustment module PLICSCOM
- VEGADIS 62
- VEGADIS 81
- VEGADIS 82
