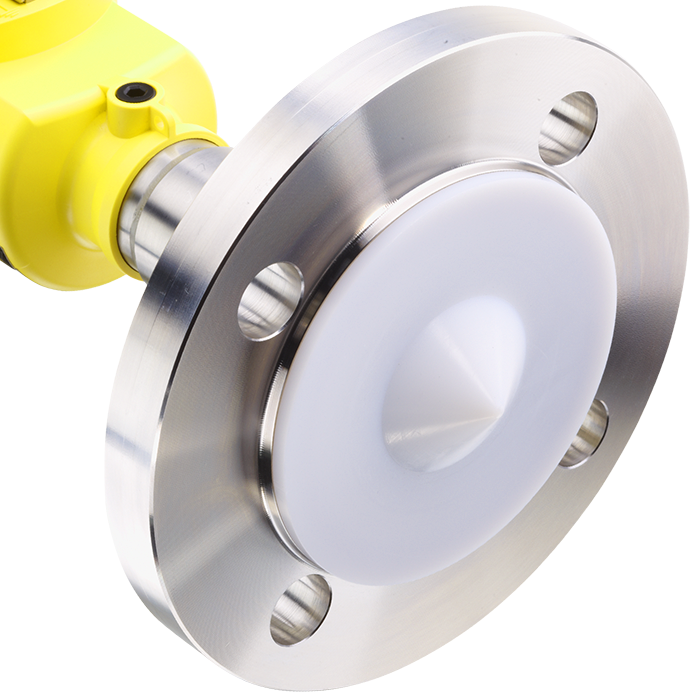

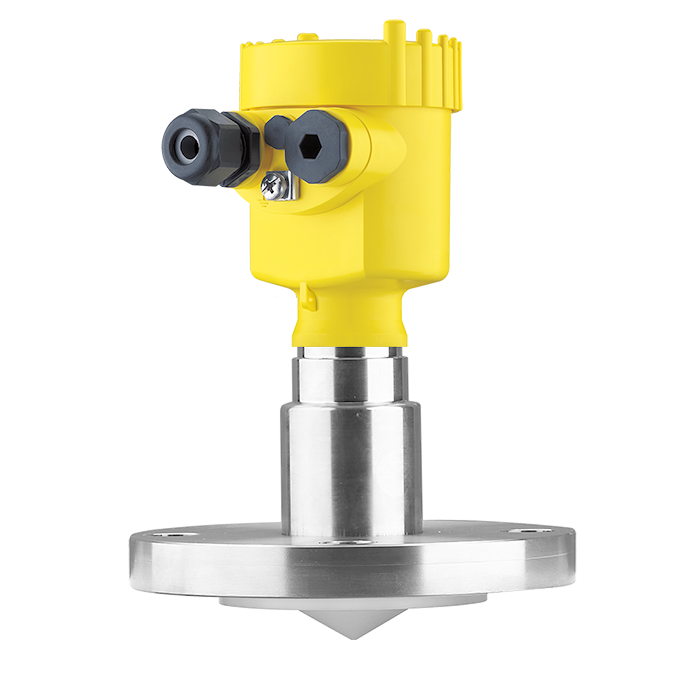

VEGAPULS 63
Radar sensor for continuous level measurement of liquids

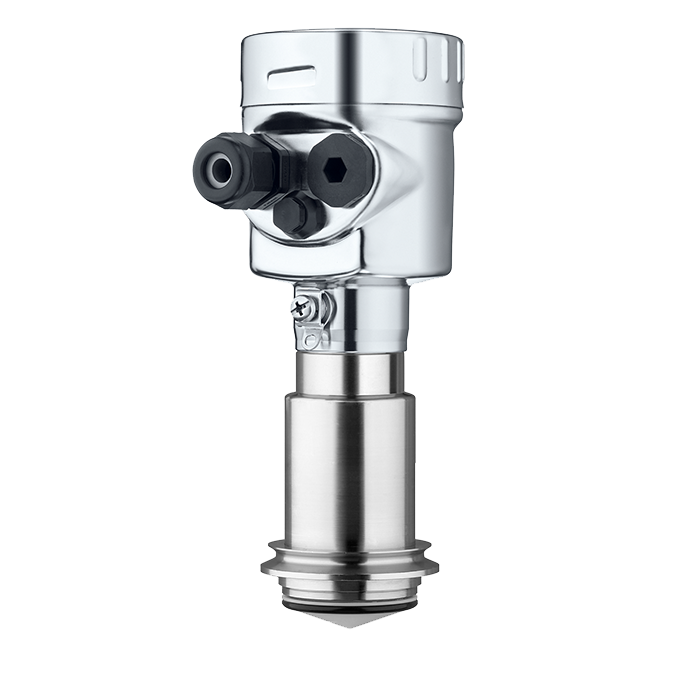

For aggressive liquids or under hygienic requirements
|
|
Application area
Your benefit
- Exact measuring results independent of process conditions
- High plant availability, because wear and maintenance-free
- Maintenance-free operation through non-contact measuring principle
Newer product available
There is a successor for this product. If you have any questions about the product, please contact your VEGA representative.
VEGAPULS 6XConfigure product
Product comparison
All documents and software for this product can be found in our Download Center.
Show all downloadsLevel measurement of aggressive liquids under difficult process conditions – especially hygienic and chemically stable
- 35 m [Meter - Foot]
- -196 ... 200 °C [°C - °F]
- -1 ... 16 bar [Bar - kPa - psi]
- ± 2 mm
- 26 GHz
- ≥ 10°
- hygienically encapsulated horn antenna
- PFA
- PTFE
- 316L
- TFM-PCTFE
- TFM-PTFE
- ≥ DN50, ≥ 2"
- Clamp ≥ 2", DN50 - DIN32676, ISO2852
- Slotted nut ≥ 2", DN50 - DIN 11851
- Varivent ≥ DN25
- hygienic fitting with tension flange DN32
- hygienic fitting F40 with compression nut
- Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A
- Hygienice flange connection ≥ DN50 DIN11864-2
- Hygienic clamp connection ≥ DN50 pipe Ø53 - DIN11864-3-A
- DRD connection ø 65 mm
- SMS 1145 DN51
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
- Modbus
- Four-wire: 4 … 20 mA/HART
- -40 ... 80 °C
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- IEC / Australia
- UKEX
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- 3A
- EHEDG
- FDA
- ABS
- BV
- CCS
- DNV
- GL
- LR
- NK
- RINA
- RMROS
- WHG
- SIL2
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
Drawing generator
Generate 2D and 3D drawings for your specific configuration.
Configure NowProduct information
VEGAPULS WL 61, 61, 62, 63, 64, 65, 66
Specification sheet
VEGAPULS 63
4 … 20 mA/HART - two-wire
Operating instructions
VEGAPULS 63
4 … 20 mA/HART - two-wire
Drawing generator
Further downloads for this product
